From Ladders to Drones: Transforming External Aircraft Visual Inspections

The aviation industry is progressively adopting automated and semi-automated technologies to support aircraft maintenance activities. Among these, Unmanned Aerial Vehicles (UAVs), commonly known as drones, are increasingly used to support external aircraft visual inspections by enabling efficient image capture of aircraft surfaces that are otherwise difficult or time-consuming to access. The images collected are reviewed by certified maintenance personnel as part of the approved inspection process.

Role of Drones in External Inspections

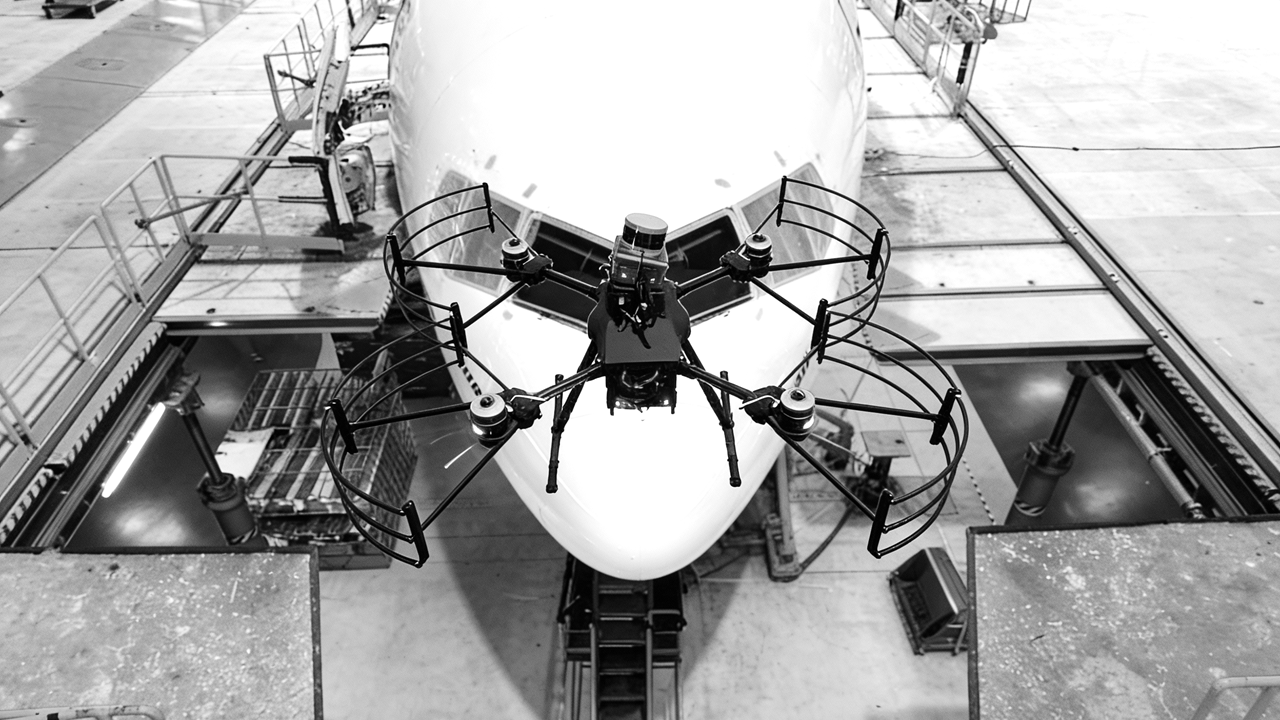

Drone inspections are primarily used to support visual checks of the aircraft exterior. Equipped with high-resolution cameras, drones allow maintenance teams to capture detailed images of areas that are traditionally accessed using platforms, ladders, or elevated work stands. Typical applications include the detection of surface damage, such as lightning strike marks or hail damage, the condition of markings and paint, and oil leaks.

Most operational drone inspections today rely on visual imagery. While some systems are being developed to support dimensional assessment or integrate additional sensing technologies, the core value of drones remains the ability to capture high-quality images of the aircraft surface. These images are subsequently reviewed by certified maintenance personnel as part of the inspection process.

Levels of Control and Automation

Drone inspections can be performed under different levels of control and automation, depending on the system used and the regulatory approval obtained.

In manual operations, a remote pilot actively controls the drone to inspect specific areas of the aircraft and capture images as required. This approach offers flexibility and is often used during unscheduled inspections or event-driven checks. The collected images are reviewed and assessed by certified maintenance staff, who remain responsible for determining airworthiness.

In semi-automated operations, the drone follows a predefined flight path under the supervision of a remote pilot or operator. Image capture is automated to ensure systematic inspection of the aircraft surfaces defined in the inspection scope. Certified maintenance personnel review and interpret the images to identify discrepancies or damage.

In highly automated operations, the drone follows predefined inspection routes and uses software tools to support image organization, comparison, and prioritization. Some systems include assisted defect detection to highlight areas of interest. However, these systems do not remove the need for human oversight. Inspection results must be reviewed and validated by certified maintenance personnel before any maintenance decisions or actions are taken.

At present, certain operators have received approval to perform manual and semi-automated drone inspections for specific tasks and aircraft types, while highly automated functions are accepted only as support tools for image management, comparison, and defect identification. In all cases, full human oversight and validation by certified maintenance personnel remain mandatory.

Efficiency and Operational Benefits

One of the main drivers for adopting drone inspections is efficiency. Traditional external inspections can require significant setup time, including positioning access equipment and ensuring safe working conditions at height. Drone-based image acquisition can significantly reduce this effort.

For example, while a conventional external inspection of a wide-body aircraft may take several hours including access preparation, drone image acquisition can often be completed within minutes. The use of coordinated drone swarms, where multiple drones inspect different areas simultaneously, can further reduce inspection time. It is important to note, however, that image review, validation, and documentation still require qualified personnel and sufficient time. The efficiency gains are therefore mainly associated with access and image capture, rather than the elimination of inspection responsibilities.

Regulatory Acceptance and Approval Pathways

The use of drones for aircraft inspections requires regulatory acceptance. Authorities do not approve the technology itself, but rather the way it is integrated into an approved maintenance program.

Two common approval pathways exist. In an operator-based approval, an airline or operator proposes the use of drones as an alternative method within its maintenance program. The operator must demonstrate that the drone-based inspection is equivalent to the traditional method in meeting the intent of the inspection task. Approval is limited to that specific operator and aircraft type.

In a manufacturer-based approval, drone inspection procedures are incorporated into approved maintenance documentation, such as the Aircraft Maintenance Manual. This approach allows the method to be used by all operators of that aircraft type, once approved by the relevant authority.

Within the MSG-3 standard, the Industry Maintenance Review Board Policy Board (IMRBPB) are considering the use of drones, robots, scanners, and cameras as acceptable means to perform inspections that replicate or exceed the capabilities defined for General Visual Inspections (GVI). Any such application must ensure that the original maintenance task intent is fully met and validated by the type certificate holder and the certifying authority.

Operational Considerations

Operational context also plays a role in approval and implementation. Drone operations conducted indoors, such as within closed hangars, are generally simpler to approve, as they do not interact with airport airspace or external traffic. Outdoor operations, including work performed in open hangars or on the apron, are more complex and require coordination with airport authorities and air traffic services, in addition to aviation safety authorities.

Current Limitations and Future Developments

Today, drone inspections are primarily approved as equivalent to General Visual Inspections, focusing on surface condition and visible damage. More advanced applications, such as combining drones with thermography, infrared imaging, or other sensing technologies, are still under development and evaluation. These technologies show potential to further enhance inspection capabilities, but they require additional validation before being widely adopted in certified maintenance programs.

Conclusion

Drone inspections are becoming a valuable support tool in aircraft maintenance, offering improved access, consistency, and efficiency for external visual inspections. Their successful integration depends not on technology alone, but on clear procedures, trained personnel, and regulatory approval. When properly implemented, drones support maintenance organizations in achieving safe, efficient, and compliant inspections.
