Damage Tolerance and Fatigue Evaluation of Aircraft Structures

Maintaining the structural integrity of an aircraft throughout its operational life is a fundamental requirement for aviation safety. To achieve this, aircraft structures must be designed and evaluated to withstand the effects of multiple sources of damage, including accidental impacts, environmental degradation, and fatigue from repeated operational stresses. These evaluations are essential to prevent catastrophic failures and support the establishment of maintenance requirements that ensure safe operation during the operational life of the aircraft.

Sources of Structural Damage

Aircraft structures are subject to several types of damage throughout their service life:

• Accidental Damage (AD): Random event which may reduce the strength of the structure and is not readily detectable. For example, handling equipment, foreign objects, hail, lightning strikes, runway debris, etc. Large-size ADs as a bird strike, large hail, or major collisions that are detectable immediately are not part of this assessment.

• Environmental Deterioration (ED): deterioration as a result of chemical interaction with the climate or environment. For example, corrosion and stress corrosion cracking, which is the combination of a corrosive environment and tensile stress.

• Fatigue Damage (FD): Repeated operational loading can initiate cracks in structural elements, which may grow over time and compromise structural capability. Fatigue damage often begins as small, nearly imperceptible cracks caused by stress cycles, material defects, or localized surface damage, and requires careful evaluation to manage risk.

Evaluations Supporting Damage Tolerance and Fatigue Considerations

The assessment of these damage sources is conducted through a set of structured evaluations. These evaluations form the structural foundation of the aircraft certification process.

Damage Tolerance (DT) Evaluation

Damage Tolerance (DT) is the attribute of the structure that allows it to retain its required residual strength without detrimental deformation for a period of use after sustaining a given level of fatigue, environmental, accidental, or discrete-source damage. DT is based on the fail-safe concept: the structure continues to carry its loads safely until damage is detected and repaired.

The DT evaluation identifies the structural items subject to study:

• Principal Structural Elements (PSE): Elements that contribute significantly to carrying flight, ground, or pressurization loads and whose integrity is essential for the overall structural safety of the aircraft, such as wing and empennage elements, fuselage frames and skins, landing gear and attachments, engine mounts, and thrust reverser components.

• Detail Design Points (DDP): Areas of the structure particularly susceptible to fatigue cracking or degradation, where failure could compromise load-carrying capability and potentially lead to catastrophic failure.

Any Structural Significant Item (SSI) identified during the MSG-3 analysis without an associated Principal Structural Element (PSE) is not subject to damage tolerance and fatigue evaluations. Instead, these items are addressed through the MSG-3 methodology and incorporated into the Maintenance Review Board Report (MRBR).

For each PSE and DDP, the DT evaluation defines damage criteria considering:

• Damage-Extension Characteristics: The extent of damage in terms of detectability with available inspection techniques, initially detectable crack size, residual-strength capabilities, and likely damage-extension rate.

• Inspectionability: Accessibility for inspections and, where areas are not directly inspectable, allowance for damage propagation into detectable regions or demonstration of sufficient residual strength up to the Limit of Validity (LOV) without inspection.

DT analysis includes static and repeated load testing, fatigue analysis, and review of in-service experience. These evaluations ensure that structures, with the defined extent of damage, can withstand certification loads and provide a practical basis for establishing inspection programs that detect damage before it becomes critical.

Airworthiness Limitations (ALS) inspection thresholds are derived from DT analysis and tests, ensuring early detection of accidental, environmental, or fatigue-induced damage. Corrosion levels are controlled to Level 1 or better, meaning reinforcement or replacement is not required, with the approved Corrosion Prevention and Control Program (CPCP) as an acceptable compliance means.

Fatigue Safe-Life Evaluation

When inspections based on DT evaluation are impractical or cannot reliably detect early damage, a Fatigue Safe-Life approach is applied. This method determines the number of operational events—flight hours (FH), flight cycles (FC), or other metrics—over which a structural component can safely operate with a low probability of fatigue-induced failure.

Safe-Life evaluation includes:

• Estimation of expected in-service loads,

• Structural analysis including stress concentration effects,

• Fatigue testing under operationally representative loads, and

• Consideration of fatigue initiation due to environmental effects, corrosion, accidental damage, material defects, or past service experience.

Landing gear and its local attachments are common examples where Safe-Life evaluation is applied due to accessibility limitations and high criticality. Where Safe-Life analysis cannot demonstrate avoidance of catastrophic failure up to the LOV, life limits or replacement times are established.

Widespread Fatigue Damage (WFD) Evaluation

Widespread Fatigue Damage (WFD) occurs when multiple cracks develop simultaneously in structural details, compromising residual strength. Fatigue damage may begin as small, localized cracks from operational stress, corrosion, scratches, or material defects, and can propagate under repeated loading.

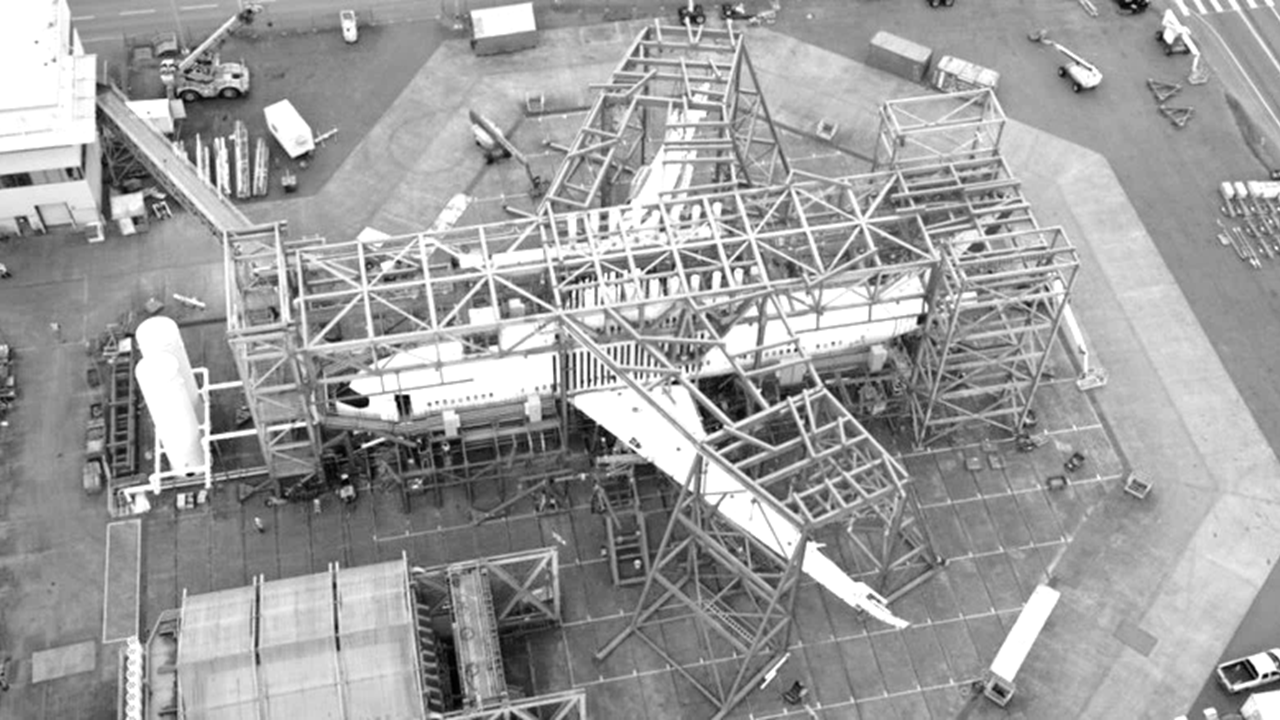

The Limit of Validity (LOV) defines the period, expressed in FH, FC, or both, during which full-scale fatigue testing and operational data demonstrate that WFD will not occur. WFD evaluations identify susceptible PSE subsets known as Fatigue Critical Structure and establish maintenance requirements or design changes to ensure safe operation up to the LOV.

Linking Evaluations to Airworthiness and Maintenance

Results from the damage tolerance and fatigue evaluation directly inform the development of Airworthiness Limitations (ALS). These may include inspection intervals, component replacement schedules, or structural modifications. When properly defined and incorporated into the Aircraft Maintenance Program (AMP), these requirements ensure that damage, fatigue, and deterioration are detected and mitigated before they threaten structural integrity.

The operational life of an aircraft, limited by the Limit of Validity (LOV), is determined based on full-scale fatigue tests and evaluation evidence. LOV establishes the maximum period during which the aircraft structure can operate safely without WFD, providing a reference for mandatory maintenance and inspections. If modifications or repairs affect critical structures, additional measures or redesigns may be required to ensure continued compliance with the LOV.

Conclusion

The Damage Tolerance and Fatigue Evaluation of aircraft structures is a cornerstone of aviation safety. By systematically assessing accidental, environmental, and fatigue-related damage, engineers and operators can define the appropriate inspection programs, maintenance schedules, and operational limits necessary to maintain structural integrity. The Limit of Validity and associated Airworthiness Limitations provide a framework to ensure that aircraft can safely operate up to their intended service life.

While Widespread Fatigue Damage forms a critical subset of this evaluation, it will be explored in detail in a dedicated follow-up article.

Learn how to prevent the consequences of structural damage and maintain aircraft integrity through an effective maintenance program →

References:

• EASA CS 25.571 – Damage tolerance and fatigue evaluation of the structure

• EASA CS 26.302 – Fatigue and damage tolerance evaluation

• FAA 14 CFR § 25.571 – Damage-tolerance and fatigue evaluation of structure

• FAA AC 25.571-1D: Damage tolerance and fatigue evaluation of the structure.

• FAA AC 120-104: Establishing and implementing the Limit of Validity to prevent widespread fatigue damage.

• FAA AC 120-93: Damage tolerance inspections for repairs and alterations.
